Getting Started With HydroModels.jl

HydroModels.jl is a modern hydrological modeling framework based on the Julia language. Built upon and extending the SUPERFLEX design philosophy, it offers flexible model construction capabilities, efficient computational performance, and support for deep learning model integration. This tutorial will demonstrate how to build and run hydrological models using HydroModels.jl.

Installation

] add HydroModels

Build a ExpHydro Model

Introduction to ExpHydro Model

ExpHydro is a simple hydrological model consisting of a snow module and a soil module. Its mathematical expressions are as follows.

\[\begin{aligned} & \text{Snowpack Bucket:} \\ & pet = 29.8 \cdot lday \cdot 24 \cdot 0.611 \cdot \frac{\exp(17.3 \cdot temp)}{temp + 237.3} \cdot \frac{1}{temp + 273.2} && (1) \\ & snowfall = H(T_{min} - temp) \cdot prcp && (2) \\ & rainfall = H(temp - T_{m,n}) \cdot prcp,&& (3) \\ & melt = H(temp - T_{max}) \cdot H(snowpack) \cdot \min(snowpack, D_f \cdot (temp - T_{max})) && (4) \\ & \frac{d(snowpack)}{dt} = snowfall - melt && (5) \\ \\ & \text{Soilwater Bucket:} \\ & evap = H(soilwater) \cdot pet \cdot \min(1.0, \frac{soilwater}{S_{max}}) && (6) \\ & baseflow = H(soilwater) \cdot Q_{max} \cdot \exp(-f \cdot \max(0.0, S_{max} - soilwater)) && (7) \\ & surfaceflow = \max(0.0, soilwater - S_{max}) && (8) \\ & flow = baseflow + ,urfaceflow && (9) \\ & \frac{d(soilwater)}{dt} = rainfall + melt - evap - flow && (10) \end{aligned}\]

where $H(x)$ represents the Heaviside step function that equals 1 when $x > 0$ and 0 otherwise; $T_{min}$, $T_{max}$, $D_f$, $S_{max}$, $Q_{max}$, and $f$ are model parameters; $temp$, $lday$, and $prcp$ are input variables; $snowpack$ and $soilwater$ are state variables; and the remaining variables are intermediate calculation variables.

Build an ExpHydro Model in HydroModels.jl

After understanding the basic principles of the ExpHydro model, we can use HydroModels.jl to build this model.

Import Packages

First, import the HydroModels.jl package:

using HydroModels

Define Variables and Parameters

Define the model parameters, state variables, and other variables (including precipitation, evaporation, snowmelt, surface flow, etc.):

@variables temp lday pet prcp
@variables snowfall rainfall melt evap baseflow surfaceflow flow
@variables snowpack soilwater
@parameters Tmin Tmax Df Smax Qmax f

Build Flux Formulas by HydroFlux

Next, we need to construct the various computational formulas of the model, including state equations and intermediate variable calculations. Let's use the snowmelt formula as an example to demonstrate how to use HydroFlux:

# define the step function
step_func(x) = (tanh(5.0 * x) + 1.0) * 0.5

melt_flux = HydroFlux([snowpack, temp] => [melt], [Tmax, Df], exprs=[step_func(temp - Tmax) * step_func(snowpack) * min(snowpack, Df * (temp - Tmax))])

When constructing HydroFlux, several points need attention:

Ensure all variables and parameters used in the expression are declared in the inputs
Input and output variables are connected through the Pair type (=>)
Parameters are passed as vectors
Expressions are passed as vectors to the exprs parameter

HydroFlux first accepts a Pair type consisting of input and output variables, then takes a Vector of parameters, and finally accepts the snowmelt formula expression through exprs to complete the construction of the snowmelt formula.

It's important to note that when building HydroFlux, you must ensure that all variables and parameters in expr are included in the input variables and parameters. If there are variables or parameters in exprs that haven't been provided to HydroFlux, errors may occur during subsequent calculations due to undefined variables. In such cases, you'll need to check if the HydroFlux construction is correct.

Of course, when building HydroFlux, parameter variables are not always necessary. If parameters are not needed, they can be omitted, as shown in the potential evapotranspiration calculation formula:

pet_flux = HydroFlux([temp, lday] => [pet], exprs=[29.8 * lday * 24 * 0.611 * exp(17.3 * temp) / (temp + 237.3) * 1 / (temp + 273.2)])

This formula uses temp and lday as input variables and calculates pet as the output variable. Since this formula doesn't involve parameters, there's no need to pass parameter variables.

It's worth noting that HydroFlux's exprs parameter can only accept a Vector of expressions. This is because HydroFlux sometimes needs to support multiple output variables, thus requiring multiple expressions, and the number of expressions must match the number of outputs. Here's an example using the rain-snow separation formula:

HydroFlux([prcp, temp] => [snowfall, rainfall], [Tmin], exprs=[step_func(Tmin - temp) * prcp, step_func(temp - Tmin) * prcp])

This formula uses prcp and temp as input variables and calculates snowfall and rainfall as output variables, while using Tmin as a parameter. Since this formula outputs two variables (snowfall and rainfall), two expressions must be provided to represent the calculation formulas for each output variable.

Build State Formulas by StateFlux

Generally, state equations are constructed as the sum of input fluxes minus the sum of output fluxes. Therefore, we can use a Pair to represent this input-output relationship and include the state variable to build a StateFlux. Here's an example with the snowpack state equation:

snowpack_flux = StateFlux([snowfall] => [melt], snowpack)

This formula uses snowfall as the input variable and calculates snowpack as the output variable, while incorporating the state variable snowpack to construct the snowpack state equation.

Typically, before constructing state equations, it's preferable to build all involved fluxes using HydroFlux first, then combine them using StateFlux with input-output flux Pairs and state variables to get an intuitive StateFlux. However, to avoid introducing unnecessary variables, you can also directly construct more complex StateFlux equations. In fact, this construction method is highly consistent with HydroFlux - it similarly takes input and output variables as StateFlux inputs, names the state variables and required parameters, and finally constructs the state equation. Let's rebuild the snowpack state equation:

snowpack_flux = StateFlux([prcp, temp, melt], snowpack, [Tmin], expr=step_func(Tmin - temp) * prcp-melt)

In this state equation, instead of directly calculating snowfall, we perform the calculation using prcp and temp, combining with the state equation dsnowpack/dt=snowfall-melt to construct a complex state equation that omits the snowfall intermediate variable.

Build Snowfall Bucket

After completing the necessary HydroFlux and StateFlux constructions, we can build a HydroBucket. Using the snowpack Bucket as an example, we need to pass the constructed HydroFlux and StateFlux to HydroBucket.

First, store the relevant HydroFlux and StateFlux in a Vector:

fluxes_1 = [
    HydroFlux([temp, lday] => [pet], exprs=[29.8 * lday * 24 * 0.611 * exp((17.3 * temp) / (temp + 237.3)) / (temp + 273.2)]),
    HydroFlux([prcp, temp] => [snowfall, rainfall], [Tmin], exprs=[step_func(Tmin - temp) * prcp, step_func(temp - Tmin) * prcp]),
    HydroFlux([snowpack, temp] => [melt], [Tmax, Df], exprs=[step_func(temp - Tmax) * step_func(snowpack) * min(snowpack, Df * (temp - Tmax))]),
]
dfluxes_1 = [StateFlux([snowfall] => [melt], snowpack),]
snowpack_bucket = HydroBucket(name=:surface, fluxes=fluxes_1, dfluxes=dfluxes_1)

Then use these Vector variables as input to build a hydrological computation module, i.e., HydroBucket:

snowpack_bucket = HydroBucket(name=:surface, fluxes=fluxes_1, dfluxes=dfluxes_1)

Through HydroBucket, we can complete the construction of a hydrological computation module. During the construction of HydroBucket, the program executes some automatic construction methods to express the ordinary differential equations and other variable calculation functions in the computation module. For implementation details, please refer to the implementation section.

Build Exphydro Model

Following the same logic, we can build the soil computation module, then concatenate the two modules into a Vector type and input it to HydroModel to complete the construction of the ExpHydro model. The complete construction code is as follows:

#* import packages
using HydroModels

#* define variables and parameters
@variables temp lday pet prcp
@variables snowfall rainfall melt evap baseflow surfaceflow flow
@variables snowpack soilwater
@parameters Tmin Tmax Df Smax Qmax f

step_func(x) = (tanh(5.0 * x) + 1.0) * 0.5

#* define snowpack bucket
fluxes_1 = [
    HydroFlux([temp, lday] => [pet], exprs=[29.8 * lday * 24 * 0.611 * exp((17.3 * temp) / (temp + 237.3)) / (temp + 273.2)]),
    HydroFlux([prcp, temp] => [snowfall, rainfall], [Tmin], exprs=[step_func(Tmin - temp) * prcp, step_func(temp - Tmin) * prcp]),
    HydroFlux([snowpack, temp] => [melt], [Tmax, Df], exprs=[step_func(temp - Tmax) * step_func(snowpack) * min(snowpack, Df * (temp - Tmax))]),
]
dfluxes_1 = [StateFlux([snowfall] => [melt], snowpack),]
snowpack_bucket = HydroBucket(name=:surface, fluxes=fluxes_1, dfluxes=dfluxes_1)

#* define soilwater bucket
fluxes_2 = [
    HydroFlux([soilwater, pet] => [evap], [Smax], exprs=[step_func(soilwater) * pet * min(1.0, soilwater / Smax)]),
    HydroFlux([soilwater] => [baseflow], [Smax, Qmax, f], exprs=[step_func(soilwater) * Qmax * exp(-f * (max(0.0, Smax - soilwater)))]),
    HydroFlux([soilwater] => [surfaceflow], [Smax], exprs=[max(0.0, soilwater - Smax)]),
    HydroFlux([baseflow, surfaceflow] => [flow], exprs=[baseflow + surfaceflow]),
]
dfluxes_2 = [StateFlux([rainfall, melt] => [evap, flow], soilwater)]
soilwater_bucket = HydroBucket(name=:soil, fluxes=fluxes_2, dfluxes=dfluxes_2)

#* define the Exp-Hydro model
exphydro_model = HydroModel(name=:exphydro, components=[snowpack_bucket, soilwater_bucket])

This completes the construction of an ExpHydro model. When we print this type, we can see the basic information contained in the model:

HydroModel: exphydro
   Components: surface, soil
   Inputs: [temp, lday, prcp]
   States: [snowpack, soilwater]
   Outputs: [pet, snowfall, rainfall, melt, evap, baseflow, surfaceflow, flow]
   Parameters: [Tmin, Tmax, Df, Smax, Qmax, f]
   Components:
       Fluxes: 0 fluxes
       Buckets: 2 buckets
       Routes: 0 routes

This information shows the model's name, component names, input variables, state variables, output variables, parameter variables, and the number of Fluxes, Buckets, and Routes contained in the model.

Define Neural Network by Lux.jl

HydroModels.jl supports neural network definition through Lux.jl. Here's an example using a simple fully connected neural network:

using Lux

# define the ET NN and Q NN
ep_nn = Lux.Chain(
    Lux.Dense(3 => 16, tanh),
    Lux.Dense(16 => 16, leakyrelu),
    Lux.Dense(16 => 1, leakyrelu),
    name=:epnn
)

q_nn = Lux.Chain(
    Lux.Dense(2 => 16, tanh),
    Lux.Dense(16 => 16, leakyrelu),
    Lux.Dense(16 => 1, leakyrelu),
    name=:qnn
)

After constructing two fully connected neural networks ep_nn and q_nn using Lux.jl, we can build neural network formulas using NeuralFlux provided by HydroModel.jl:

@variables norm_snw norm_slw norm_temp norm_prcp
@variables log_evap_div_lday log_flow

ep_nn_flux = NeuralFlux([norm_snw, norm_slw, norm_temp] => [log_evap_div_lday], ep_nn)
q_nn_flux = NeuralFlux([norm_slw, norm_prcp] => [log_flow], q_nn)

NeuralFlux is a derivative type of HydroFlux. It similarly accepts a Pair of input and output variables, but unlike HydroFlux, it doesn't require model parameters and calculation formulas. Instead, it needs the neural network to be passed as a parameter to NeuralFlux to construct the neural network formula. It's important to note that the input and output variable dimensions must match those of the NeuralFlux.

After completing the construction of NeuralFlux, we can pass it along with other HydroFluxes to HydroBucket to build a neural network-coupled hydrological model:

soil_fluxes = [
    #* normalize
    HydroFlux([snowpack, soilwater, prcp, temp] => [norm_snw, norm_slw, norm_prcp, norm_temp],
        [snowpack_mean, soilwater_mean, prcp_mean, temp_mean, snowpack_std, soilwater_std, prcp_std, temp_std],
        exprs=[(var - mean) / std for (var, mean, std) in zip([snowpack, soilwater, prcp, temp],
            [snowpack_mean, soilwater_mean, prcp_mean, temp_mean],
            [snowpack_std, soilwater_std, prcp_std, temp_std]
        )]),
    ep_nn_flux,
    q_nn_flux
]

This soil module includes normalization formulas, evaporation formulas, and runoff formulas. Next, we can pass these formulas to HydroBucket and combine them with state equations to complete the construction of the soil module:

state_expr = rainfall + melt - step_func(soilwater) * lday * exp(log_evap_div_lday) - step_func(soilwater) * exp(log_flow)
soil_dfluxes = [StateFlux([soilwater, rainfall, melt, lday, log_evap_div_lday, log_flow], soilwater, expr=state_expr)]
soilwater_bucket = HydroBucket(name=:soil, fluxes=soil_fluxes, dfluxes=soil_dfluxes)
m50_model = HydroModel(name=:m50, components=[snowpack_bucket, soilwater_bucket])

Run a ExpHydro Model

After completing the model construction, since the model is callable, we can input the data and parameters into the model to obtain output results.

Prepare Input Data

The model accepts input observation data of type AbstractMatrix, with dimensions being the number of input variables multiplied by the number of time steps. For example, if there are 3 input variables and 1000 time steps, the input observation data dimensions would be (3, 1000). It's important to note that the index of input variables in the dimension will affect the model calculation results, as the model cannot automatically identify which row in the Matrix corresponds to which input variable. Therefore, users can first prepare a Dict or NamedTuple type, then use HydroModels.get_input_names(model) to get the names of the model's input variables, and combine these names with the Dict or NamedTuple to construct the Matrix type input data:

input = (lday=df[ts, "dayl(day)"], temp=df[ts, "tmean(C)"], prcp=df[ts, "prcp(mm/day)"])
input_arr = Matrix(reduce(hcat, collect(input[HydroModels.get_input_names(exphydro_model)]))')

Prepare Parameters and Initial States

For parameter preparation, HydroModels.jl accepts parameters of type ComponentVector (using ComponentArrays), storing parameter names and values in the ComponentVector, for example:

f, Smax, Qmax, Df, Tmax, Tmin = 0.01674478, 1709.461015, 18.46996175, 2.674548848, 0.175739196, -2.092959084
params = ComponentVector(f=f, Smax=Smax, Qmax=Qmax, Df=Df, Tmax=Tmax, Tmin=Tmin)

For initial state preparation, HydroModels.jl similarly accepts initial states of type ComponentVector, storing state names and values in the ComponentVector, for example:

init_states = ComponentVector(snowpack=0.0, soilwater=1303.004248)

Then store the parameters and initial states in a single ComponentVector (sometimes initial states are also treated as parameters to be optimized, so they need to be stored together with parameters for unified management):

pas = ComponentVector(params=params, initstates=init_states)

Run the ExpHydro Model

Finally, we can input the data and parameters into the model to obtain the output results:

result = exphydro_model(input_arr, pas)

The model output is also of type AbstractMatrix, with dimensions being the number of output variables (including state variables) multiplied by the number of time steps. For example, if there are 8 output variables and 1000 time steps, the output dimensions would be (8, 1000). If you want to export the results as a DataFrame type, you can use HydroModels.get_output_names(model) to get the names of the output variables, then combine them with a Dict or NamedTuple to construct a DataFrame:

states_and_output_names = vcat(HydroModels.get_state_names(exphydro_model), HydroModels.get_output_names(exphydro_model))
output = NamedTuple{Tuple(states_and_output_names)}(eachslice(result, dims=1))
df = DataFrame(output)

The calculation results look like this:

10000×10 DataFrame
   Row │ snowpack  soilwater  pet      snowfall  rainfall  melt      evap      baseflow   surfaceflow  flow
       │ Float64   Float64    Float64  Float64   Float64   Float64   Float64   Float64    Float64      Float64
───────┼─────────────────────────────────────────────────────────────────────────────────────────────────────────
     1 │    0.0         0.0      3.1        0.0   1305.22  1.13779   0.868735  0.0212194          0.0  0.0212194
     2 │    0.0         0.0      4.24       0.0   1308.28  1.51019   1.15578   0.0223371          0.0  0.0223371
     3 │    0.0         0.0      8.02       0.0   1315.03  1.63204   1.25547   0.0250095          0.0  0.0250095
     4 │    0.0         0.0     15.27       0.0   1329.34  1.21771   0.946937  0.0317802          0.0  0.0317802
     5 │    0.0         0.0      8.48       0.0   1336.99  1.02779   0.803845  0.0361228          0.0  0.0361228
   ⋮   │    ⋮          ⋮         ⋮        ⋮         ⋮         ⋮         ⋮          ⋮           ⋮           ⋮
  9996 │  254.264       0.0      0.0       -0.0   1521.37  0.221762  0.197362  0.791897           0.0  0.791897
  9997 │  266.324      12.06     0.0       -0.0   1520.37  0.238907  0.21248   0.778688           0.0  0.778688
  9998 │  277.874      11.55     0.0       -0.0   1519.33  0.288362  0.256291  0.765307           0.0  0.765307
  9999 │  279.714       1.84     0.0       -0.0   1518.29  0.311022  0.27624   0.752073           0.0  0.752073
 10000 │  279.854       0.14     0.0       -0.0   1517.38  0.176836  0.156967  0.740711           0.0  0.740711

Plot the Results

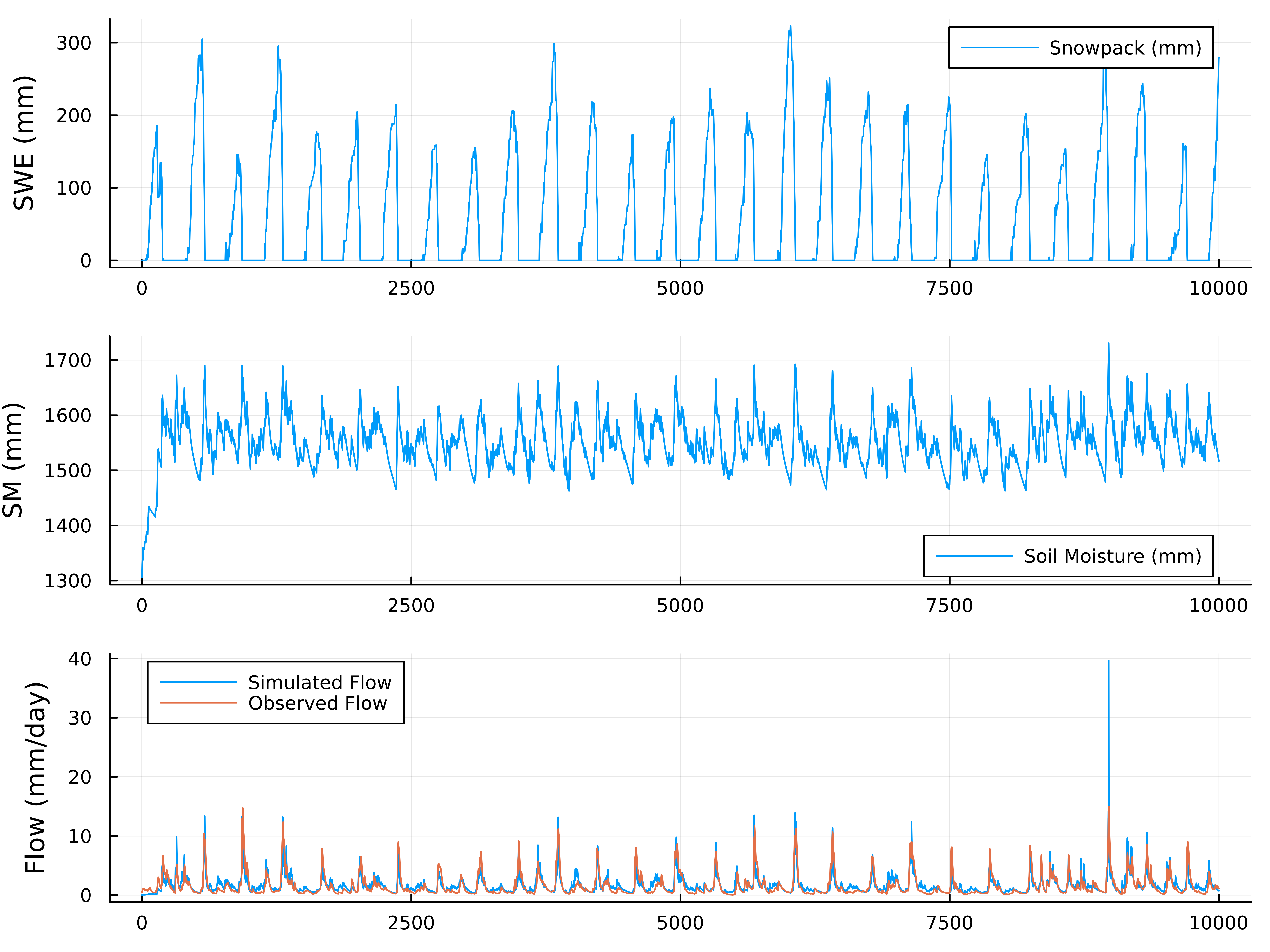

The model results are compared with the actual values and plotted into a line graph as follows.

exphydro model predict

Running with Config

The model computation is not limited to these basic features. To support necessary settings during the computation process, HydroModel can accept a config parameter.

For example, by default, the model uses only the Euler method to solve ordinary differential equations. However, sometimes a more accurate solving method is needed, which can be set using the config parameter.

To demonstrate this functionality, we need to additionally import OrdinaryDiffEq.jl and HydroModelTools.jl, then set the solving method:

using OrdinaryDiffEq
using HydroModelTools
using DataInterpolations

config = (solver=ODESolver(alg=Tsit5(), abstol=1e-3, reltol=1e-3), interp=LinearInterpolation)
output = exphydro_model(input_arr, pas, config=config)

The config parameter is set as a NamedTuple type, where the solver parameter is used to set the solving method, and the interp parameter is used to set the interpolation method. ODESolver is a solver wrapper class provided by HydroModelTools.jl that performs some data conversion on the solution results. It accepts solving methods from OrdinaryDiffEq.jl as parameters and sets the solving method parameters.

[Would you like me to continue with the neural network implementation section?]

Run the Neural Network Enhanced Model

Earlier we built an ExpHydro model coupled with neural networks, and now we can use this model to calculate results.

First, we need to prepare the model parameters. In addition to the ExpHydro model parameters, we also need to prepare neural network parameters:

using StableRNGs

ep_nn_params = Vector(ComponentVector(LuxCore.initialparameters(ep_nn)))
q_nn_params = Vector(ComponentVector(LuxCore.initialparameters(q_nn)))

Models based on Lux.jl can decouple parameters from model structure, which is the primary reason we chose to use Lux.jl to build neural networks. After using LuxCore.initialparameters, we convert the parameters (NamedTuple) to Vector type, then combine them with the model parameters and initial states to build the complete model parameters:

nn_pas = ComponentVector(epnn=ep_nn_params, qnn=q_nn_params)
pas = ComponentVector(params=params, initstates=init_states, nns=nn_pas)

It's important to note that we need to use the key name nns to store the neural network parameters, keeping them independent from model parameters and initial states. Additionally, the neural network parameters nn_pas need to use model names and parameters as key-value pairs.

Finally, we can input the model parameters into the model to obtain the output results:

output = m50_model(input_arr, pas)

Conclusion

This tutorial has provided a detailed introduction to the basic usage of HydroModels.jl, including:

Model building process
Parameter and initial state configuration
Model execution and computation

Through this tutorial, users can quickly master the core functionality of HydroModels.jl and begin building their own hydrological models.

HydroModels.jl also offers more advanced features, including:

Semi-distributed and distributed hydrological model construction and computation
Neural network-coupled parameter-adaptive models
GR4J model with unit hydrograph routing
Model parameter optimization
Model extension functionality based on Wrapper

These advanced features will be covered in subsequent tutorials.
